Series GA3100

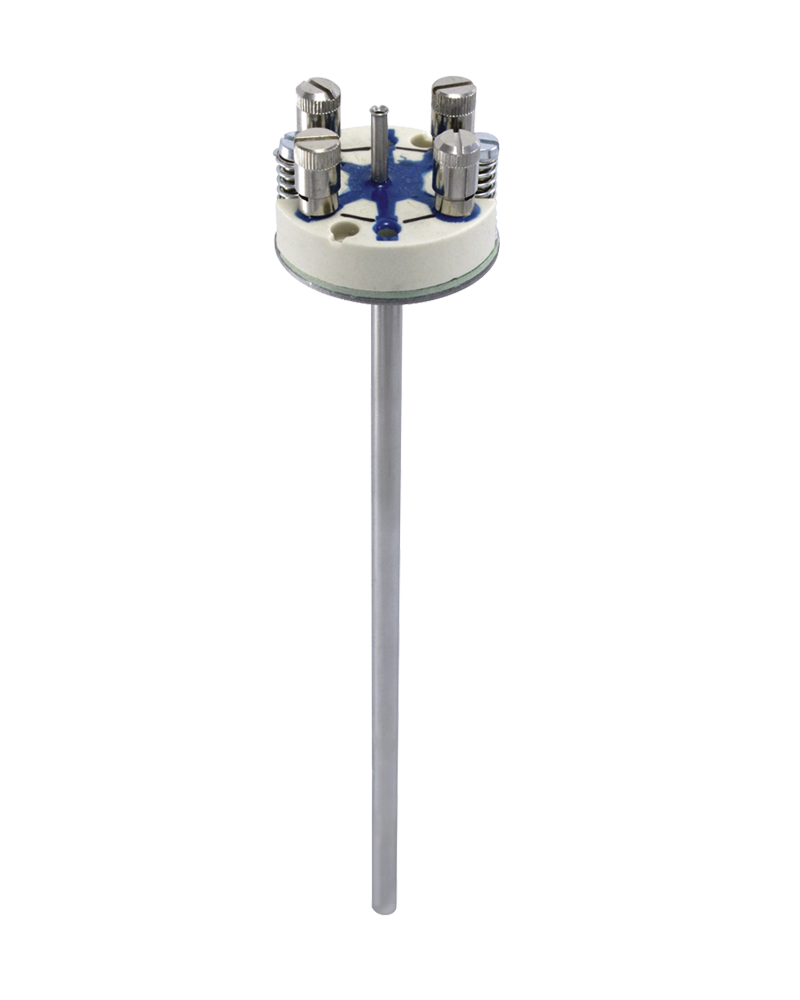

Measuring insert for In-process calibration with additional test pipe
Application area
The measuring inserts per DIN 43735 are additonally equipped with a test pipe. A calibrated reference sensor (e.g. Labom type GA3110, data sheet T4-025-46) can be inserted in the test pipe. This makes it possible to calibrate the installed resistance thermometer without disassembling the measuring insert.
Videos
Technical data
Download Data sheetDocumentation
DB_T4-025-45
Data Sheet
XA_003 Resistance Thermometer with Pt100_IBExU 13 ATEX 1017 X
Ex safety instructions
SA_005 (GAxxxx) Resistance thermometer
SIL instructions / -declarations
